• Rear axle, 3.73 ratio
• Pickup box, Fleetside
• GVWR, 11,400 lbs. (5171 KG) with dual rear wheels
• Air cleaner, high-capacity
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models)
• Four wheel drive
• Differential, heavy-duty automatic locking rear (Included with (Z82) trailering equipment. Standard on CC30903 models. Standard with (GED) 9700 lb. GVWR (single rear wheel) and (C4M) 9900 lb. GVWR (single rear wheel).)
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 125 amps
• Frame, hydroformed
• Trailer brake controller, integrated
• Recovery hooks, front, frame-mounted
• Suspension, front independent, torsion bar
• Suspension, rear 3-stage springs
• Steering, power, recirculating ball
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust aluminized stainless-steel muffler and tailpipe

• Wheels, 6 - 17" x 6.5" (43.2 cm x 16.5 cm) 8-lug painted steel includes painted center caps and a steel spare (spare wheel will not cosmetically match the other 6 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Requires and only available with (C7W) 11,400 lbs. (5171 kg) GVWR (dual rear wheel))
• Tires, LT225/75R17E all-season, blackwall (Not available with CC30903 models. Requires (C7W) 11,400 lbs. GVWR. Includes 7 tires with (E63) Fleetside pickup box. Includes 6 tires with (ZW9) pickup box delete.)
• Wheel trim, Chrome trim skins and chrome center caps (Requires and only available with (C7W) 11,400 lbs. (5171 kg) GVWR (dual rear wheel))
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not available with (ZW9) pickup box delete or (VF7) rear bumper delete.)
• Bumper, front chrome
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete)
• Air dam, Black
• Moldings, bodyside, body-colored (Not available with Regular Cab models. Moldings are deleted if any SEO paint is ordered.)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Fog lamps, front, halogen
• Lamps, Smoked Amber roof marker (Standard on (C7W) 11,400 lbs. (5171 kg) GVWR only. With (GED) 9700 lbs. GVWR (single rear wheel) or (C4M) 9900 lbs. GVWR (single rear wheel), not available with (YF5) California state emissions requirements.)
• Mirrors, outside heated power-adjustable, Black, manual-folding (Requires (C7W) 11,400 lbs. (5171 kg) GVWR.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window.)
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, color-keyed

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock (Not available with (U42) rear seat DVD player entertainment system.)
• XM Radio. XM Radio includes 3 trial months of service. XM turns your world on with commercial-free music channels from Rock to Jazz, Country to Classical, Latin Pop to Hip Hop, and virtually everything in between, all in amazing digital sound. Turn on your favorite Sports with every Major League Baseball game from Opening Day until the World Series, NHL Hockey, the PGA TOUR and college football and basketball. Plus XM brings you the biggest names in news and talk, outrageous comedy, award-winning family programming -- wherever you go from coast to coast. Exclusive live concerts, Oprah and Friends, Radio Disney, and so much more. Find what turns you on. (Available only in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. Visit gm.xmradio.com for more details. Not available with (U3U) AM/FM stereo with MP3 compatible CD player and multimedia navigation, (UVB) AM/FM stereo with MP3 compatible CD/DVD player and DVD-based navigation or (UE0) OnStar, delete.)
• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

• Seats, front bucket includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger (Not available with (VYU) Snow Plow Prep Package.)
• Seat trim, Leather-appointed front seats
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power
• Seats, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Steering wheel controls, mounted audio controls
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down (Includes front passenger Express-down.)
• Door locks, power includes Remote Keyless Entry
• Remote vehicle starter system includes Remote Keyless Entry (Remote Keyless Entry does not lock/unlock tailgate when (PDF) LTZ Plus Package is ordered.)
• Cruise control, electronic with set and resume speed, located on steering wheel
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Crash Notification, Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, a link to all Emergency Services, Roadside Assistance, Remote Door Unlock (requires power locks), OnStar Vehicle Diagnostics, Hands-Free Calling and Remote Horn and Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. If the order type is FDR, (UE0) OnStar delete will be forced on. Visit onstar.com for system limitations and details. Not available with a ship-to of Puerto Rico or the Virgin Islands. For a list of vehicles with Automatic Crash Notification visit onstar.com. Remote Door Unlock requires (AU3) power door locks.)

ENGINE, DURAMAX 6.6L TURBO DIESEL V8 ($7,195)

• B5-Diesel compatible (365 hp [271.7 kW] @ 3200 rpm
• 660 lb-ft of torque [894.6 N-m] @ 1600 rpm) Includes (TUV) heavy-duty dual
• 730 cold-cranking-amp battery and (K05) engine block heater)

• Heavy-Duty Handling/Trailering Suspension Package
• Heavy-Duty Trailering Equipment
• LTZ Plus Package
• Preferred Equipment Group 1LZ
• 7 Speakers
• AM/FM radio: XM
• AM/FM Stereo w/MP3 Compatible CD Player
• Bose Premium Speaker System
• CD player
• Radio data system
• XM Radio
• Air Conditioning
• Automatic temperature control
• Dual-Zone Automatic Climate Control
• Front dual zone A/C
• Rear window defroster
• Rear-Window Electric Defogger
• Bluetooth® For Phone
• Driver 10-Way Power Seat Adjuster
• Front Passenger 10-Way Power Seat Adjuster
• Memory seat
• Power driver seat
• Power steering
• Power windows
• Power-Adjustable Pedals For Accelerator & Brake
• Remote keyless entry
• Remote Vehicle Starter System
• Steering wheel mounted audio controls
• Universal Home Remote
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Emergency communication system: OnStar Safe & Sound
• Front anti-roll bar
• Front wheel independent suspension
• Locking Tailgate
• Passenger cancellable airbag
• Power Door Locks
• Power Sunroof w/Express-Open
• 730 CCA Heavy-Duty Dual Battery
• Delay-off headlights
• Front fog lights
• Front Halogen Fog Lamps
• Fully automatic headlights
• Panic alarm
• Security system
• Electronic Cruise Control w/Set & Resume Speed
• Speed control
• EZ-Lift Tailgate
• Heavy-Duty Automatic Locking Rear Differential
• Engine Block Heater
• Body-Colored Bodyside Moldings
• Bodyside moldings
• Bumpers: chrome
• Color-Keyed Door Handles
• Electronic Shift Transfer Case
• Front License Plate Bracket
• Heated door mirrors
• Power door mirrors
• Rear step bumper
• Auto-Dimming Inside Rear-View Mirror
• Auto-dimming Rear-View mirror
• Color-Keyed Carpeted Floor Covering
• Compass
• Driver & Front Passenger Sliding Visors
• Driver door bin
• Driver vanity mirror
• Floor Console w/Storage Compartment
• Front reading lights
• Illuminated entry
• Leather-Wrapped Steering Wheel
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Rear reading lights
• Rear seat center armrest
• Steering Wheel Mounted Audio Controls
• Tachometer
• Tilt steering wheel
• Trip computer
• Voltmeter
• Front Bucket Seats
• Front Center Armrest
• Heated Front Bucket Seats
• Heated front seats
• Leather-Appointed Seat Trim
• Power passenger seat
• Split folding rear seat
• Passenger door bin
• Integrated Trailer Brake Controller
• Solar-Ray Deep-Tinted Glass
• Variably intermittent wipers
• 3.73 Rear Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 25.4
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4500
• Gross Axle Wt Rating - Rear (lbs): 8200
• Curb Weight - Front (lbs): 3619
• Curb Weight - Rear (lbs): 3054
• Gross Vehicle Weight Rating Cap (lbs): 11400
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 18500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1365
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3975
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8200
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.8
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: QBD
• Rear Tire Order Code: QBD
• Spare Tire Order Code: ZBD
• Front Tire Size: LT225/75R17E
• Rear Tire Size: LT225/75R17E
• Spare Tire Size: LT225/75R17E
• Front Tire Capacity (lbs): 2405
• Front Tire Capacity (lbs): 2280
• Rear Tire Capacity (lbs): 2072
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 15-13.1:1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.0
• Length, Overall w/o rear bumper (in): 254.2
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 76.1
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 150.9
• Cab to Axle (in): 55.5
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.1
• Ground Clearance, Rear (in): 9.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.7
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.3
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 75.5
• Ext'd Cab Cargo Volume (ft³): 75.5
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.5
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 65.4
• Summary

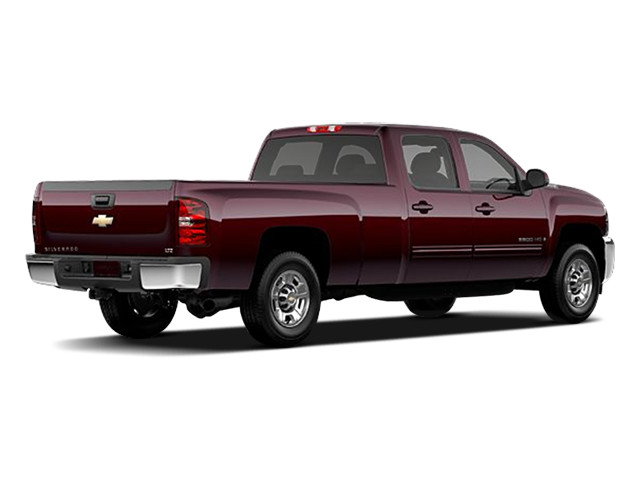

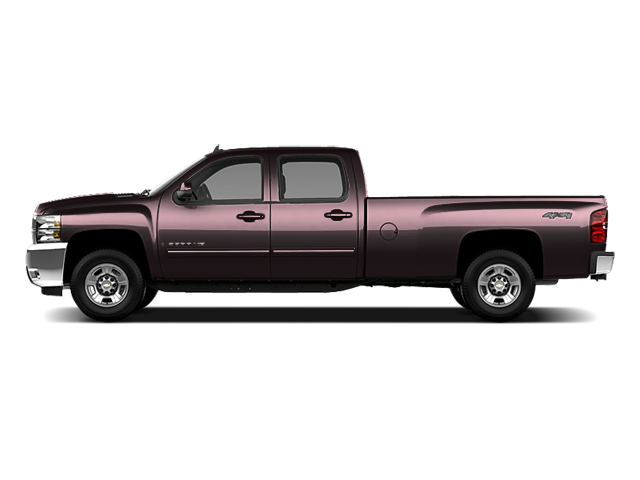

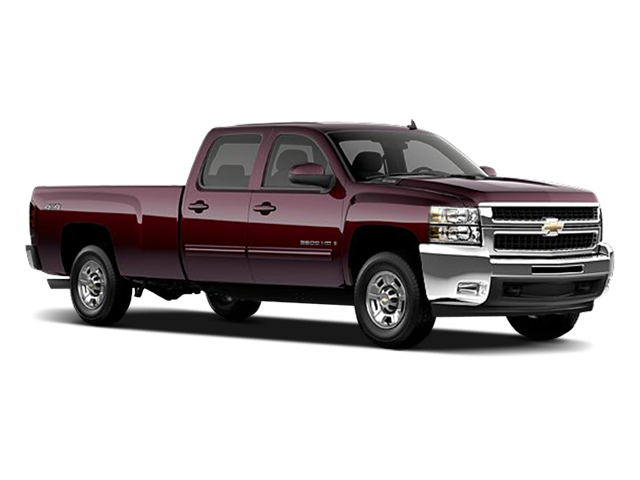

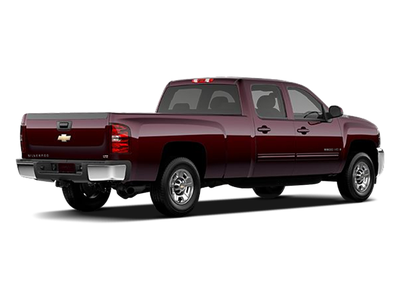

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab 8' Fleetside
• Body Code: E63
